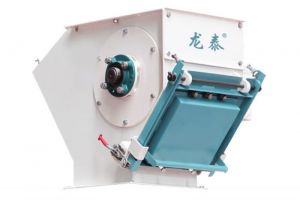

TWLY series Vane feeder

【TWLY series Vane feeder】Detail


Advantage introduction

The machine is a high-precision feeding device of the crusher , and is widely applied in oil producing , feed producing , food producing.

It adopts variable frequency motor to adjust the feeding speed full automatic, so the crusher could work under at full capacity all the time . The advantage is that this working principle could reduce the energy cost and the range of the variable frequency motor control is much larger .

The discharging port is equipped with iron removing device , so it could promise the raw material feeding to the grinder is clear enough.

The feeding port is set-over to promise the raw material will not clogged between in the blade and the inner of the box.

Upper the feeding roller is a plate, we could control the feeding capacity by adjust the distance of the plate and the feeding roller .

Technical parameters:






Model

TWLY

(20×44)

TWLY

(20×60)

TWLY

(20×80)

TWLY

(25×30)

TWLY

(25×60)

TWLY

(25×80

Capacity(t/h)

4-15

5-18

7-24

8-20

20-46

25-56

Power(KW)

0.75

1.1

1.1

1.5

1.5

1.5
