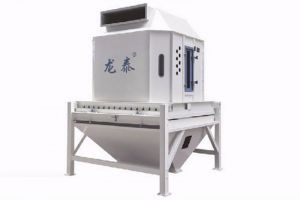

SKLN series counter-flow cooler

【SKLN series counter-flow cooler】Detail

It’s used for all kinds of pellets cooling .

Vertical structure, beautiful appearance, small cover area, and easy to maintenance.

Advanced Counter-flow cooling principle, it could making the pellet cooling totally and fully, extending the storage time.

It adopts reciprocating linear motion discharge structure, making discharging more smoothly.

The cross section using octagon cooling warehouse to remove cooling column Angle, it’s easier for material cooling, in addition , the corners of the hopper adopts circular arc Angle, reducing  the residual Angle

The driver system is reducer motor drive the shaft, so it works more smooth with low noise, easy installation and maintenance.

The discharging device adopts mechanism bearing plate, and improve the discharging mechanism of workloads greatly, has prolonged the service life .

After cooling , the temperature is not higher  + 5℃than the room temperature.

SKLN24 x 24 could equipped with rotate device to make the material uniformity.

It’s equipped with maintenance port in the front and many view window on the side to make it convenient for daily maintenance and observation .

Technical parameter

Model

SKLN16×16

SKLN19×19

SKLN22×22

SKLN24×24

SKLN28×28

Motor(Kw)

1.1

1.1

1.5

1.5+0.75

1.5+0.75

Capacity(t/h)

7.5

10

15

20

30
