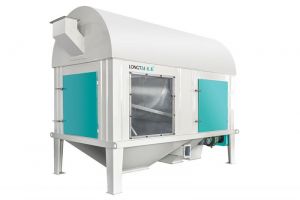

TCQYS Series Double Layer Drum Pre-cleaner

【TCQYS Series Double Layer Drum Pre-cleaner】Detail

Advantage introduction

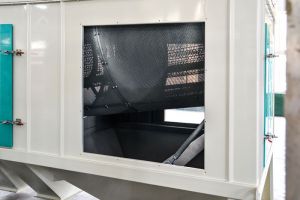

Double -layer sieve could remove the straw , stone , briquettes more effectively, at the same time , it could also remove the small size waste . The finished discharging port has a air port, when connected with the wind producer, it could remove the light waste.

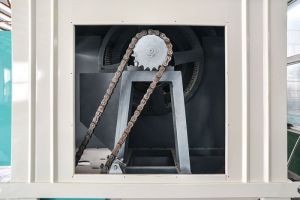

The transformation structure is impact, and all the four side the the box could be opened, it’s much easier for the maintenance.

The gradient of the sieve could be adjusted in the range from 4?to 8?to get a best effect .

The screen could be replaced , so it’s convenient and cost saving .

The inside sieve discharging port has a leading screw, this could help the large size waste getting out, in the meanwhile, it could stop the raw material discharging with the machine .

Application :it’s used for the pellets pre-cleaning of grain, storage, food, chemical industry.

Technical parameters:

Model

TCQYS

85A

TCQYS

100/220

TCQYS

100/320

TCQYS

100/420

TCQYS

125/320

TCQYS

125/420

TCQYS

150/520

Power(kw)

2.2

2.2

3

4

4

4

7.5

Capacity(t/h)

30-60

40-85

60-110

80-150

100-150

100-170

120-200
